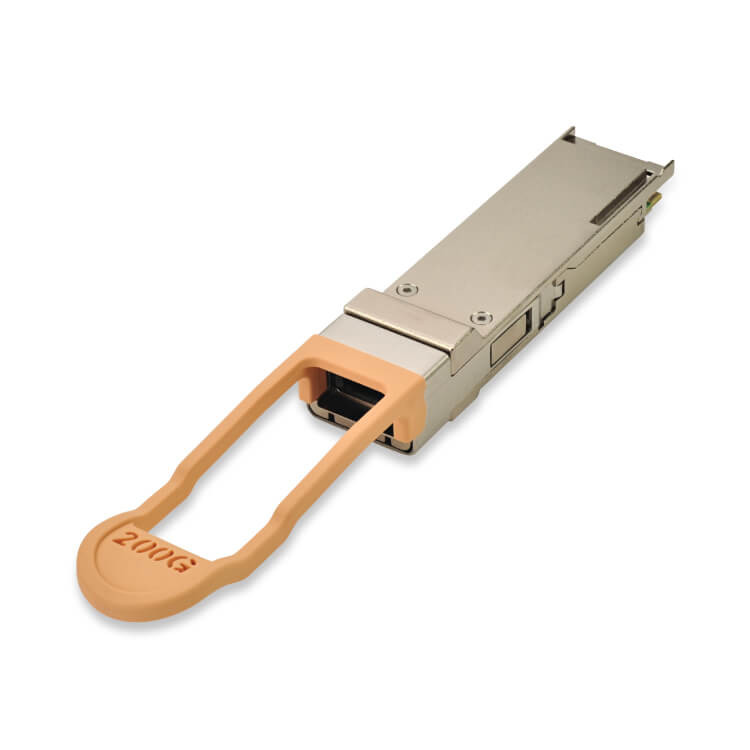

200G QSFP56 module, 4x850nm, 70m over OM3 MMF with FEC, DDM, MPO/APC connector, 0°C ~ +70°C temp range

Name: 200G QSFP56 module, 4x850nm, 70m over OM3 MMF with FEC, DDM, MPO/APC connector, 0°C ~ +70°C temp range
SKU: QSFP56-200G-SR4-T
Price: 477 EUR
Availability: InStock

Item number:

QSFP56-200G-SR4-T

200G QSFP56 module, 4x850nm, 70m over OM3 MMF with FEC, DDM, MPO/APC connector, 0°C ~ +70°C temp range

Available to order

Teroline QSFP56 module for 200G applications over multimode optical fiber. The module can be used with any network device that accepts standard MSA transceivers - e.g. D-Link, Zyxel, Mikrotik and Ubiquity among others. In case you need the transceiver with specific coding for your network equipment, please select the required compatibility from the list below. If you don't find the desired brand or not sure about your compatibility requirements, please contact us before ordering.

Connector type :

MPO12

Interface type :

Multimode Fiber (MMF)

Wavelength :

850nm

Distance :

70m

DWDM Channel :

N/A

CWDM Wavelength :

N/A

Operating temp. range :

Commercial

Application :

200G Ethernet

Compatibility

375.6 € (477.0 €)

Points earned after purchase: 9.5 €

Details

Details

Teroline optical modules are high-reliability products made from quality components using state-of-the-art manufacturing technology, designed to serve telecom, data centre and mission-critical applications.

The transceivers are compatible with the QSFP56 Multi-Source Agreement (MSA) and SFF-8472 and can be used in equipment from all major network equipment manufacturers. The desired compatibility can be selected when ordering the modules.

Teroline’s QSFP56-200G-SR4-T product is a hot-pluggable optical transceiver that supports bi-directional communication over 8 core 50/125um OM3 multimode fiber with data rates up to 200Gbps and 70m transmission distance. It is designed to be used with switches and networking devices with QSFP56 interface and matching speed and protocol.
