Managed outdoor PoE switch with integrated 200W PSU, circuit-breaker, surge protector, optical fiber tray and cooling fan. 8x10/100/1000BaseT PoE+2x1000Base-X SFP ports. IP55 rated. PoE budget 185W.

Name: Managed outdoor PoE switch with integrated 200W PSU, circuit-breaker, surge protector, optical fiber tray and cooling fan. 8x10/100/1000BaseT PoE+2x1000Base-X SFP ports. IP55 rated. PoE budget 185W.
SKU: TO-2008GP-2GS-200
Availability: InStock

Item number:

TO-2008GP-2GS-200

Managed outdoor PoE switch with integrated 200W PSU, circuit-breaker, surge protector, optical fiber tray and cooling fan. 8x10/100/1000BaseT PoE+2x1000Base-X SFP ports. IP55 rated. PoE budget 185W.

In stock : 1 pcs

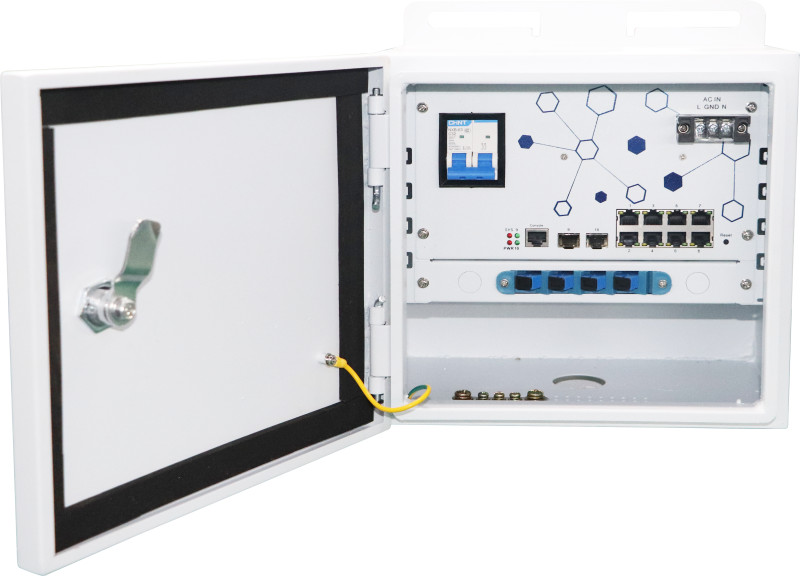

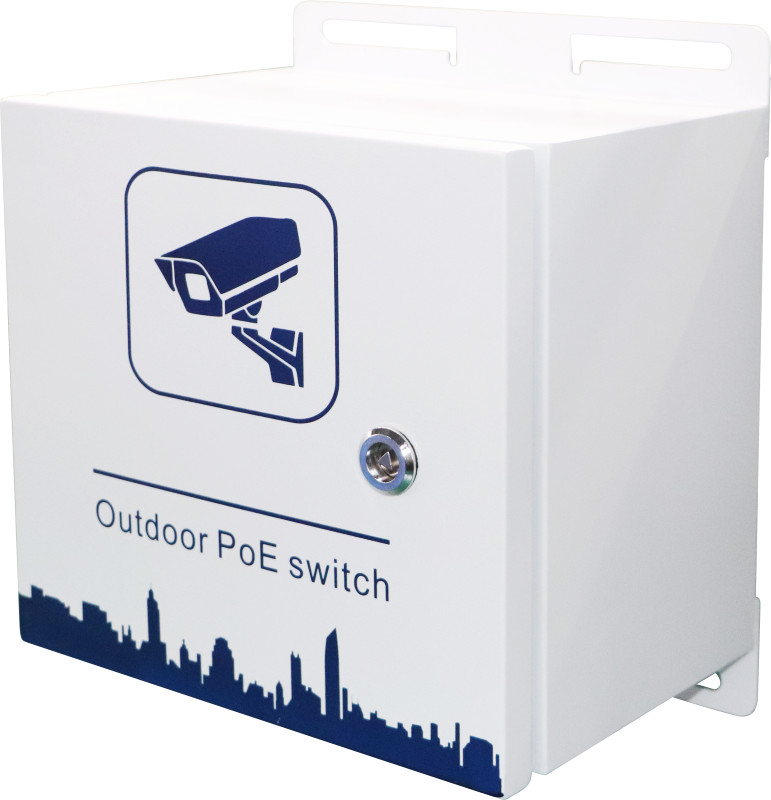

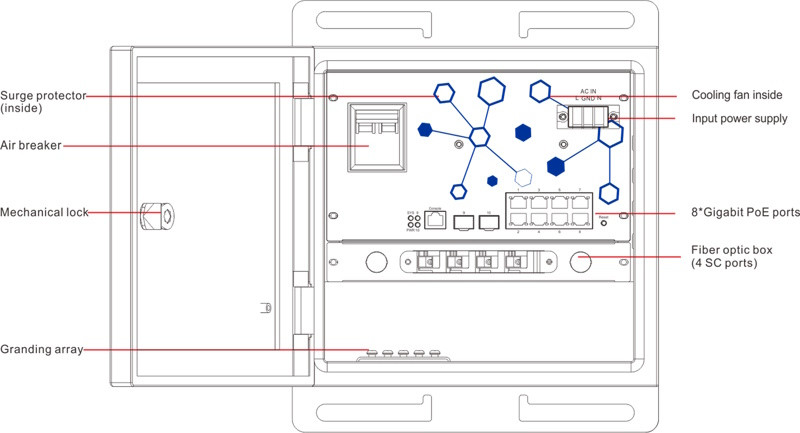

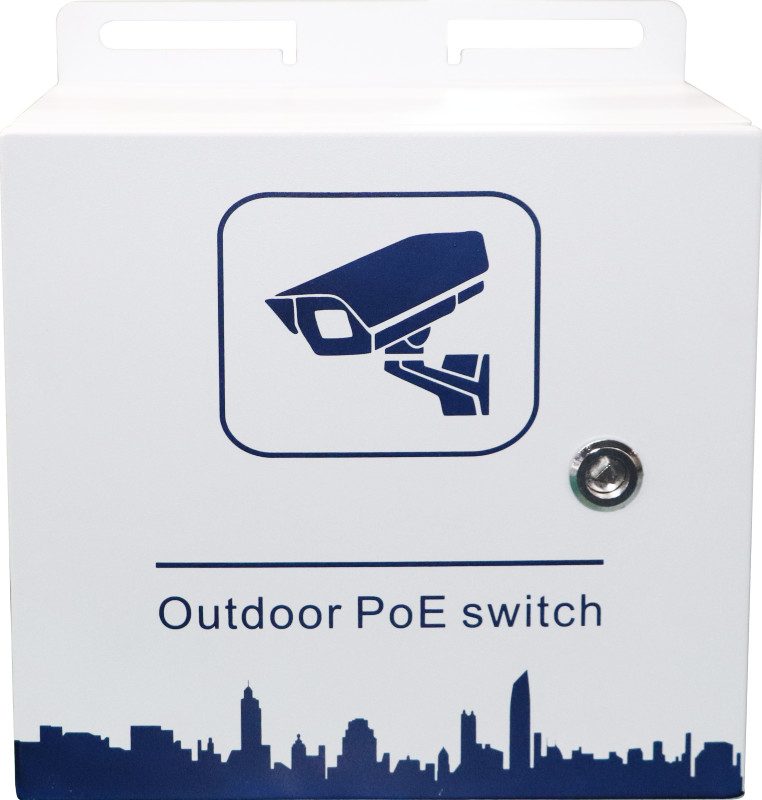

Teroline's TO-2008GP-2GS-200 is a managed industrial PoE switch, conveniently integrated into an IP55 protection rated waterproof housing. The box can be mounted on wall or pole and includes a 200W industrial PSU, air-breaker, surge protector, optical fiber tray and cooling fan. In addition to the 6KV surge protection, 6KV contact/8KV air ESD protection, it has an integrated 385A AC@20KA lightning arrester.

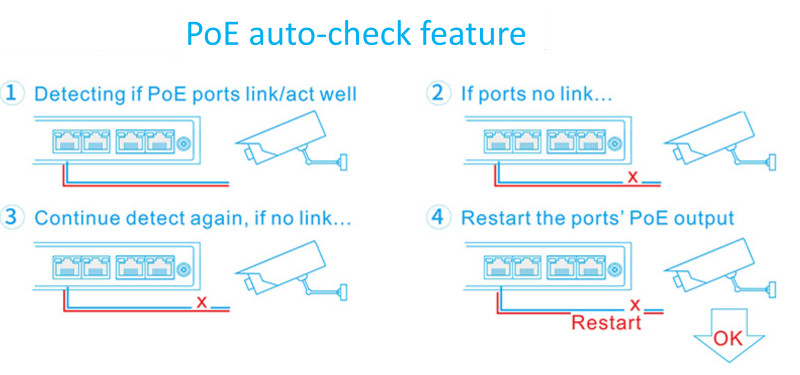

The switch has 8x10/100/1000BaseT 802.3af/at PoE ports and 2x1000Base-X SFP interfaces. PoE management features include total power consumption control, single port PoE ON/OFF and port output priority.

Functions set:

Layer 2 managed

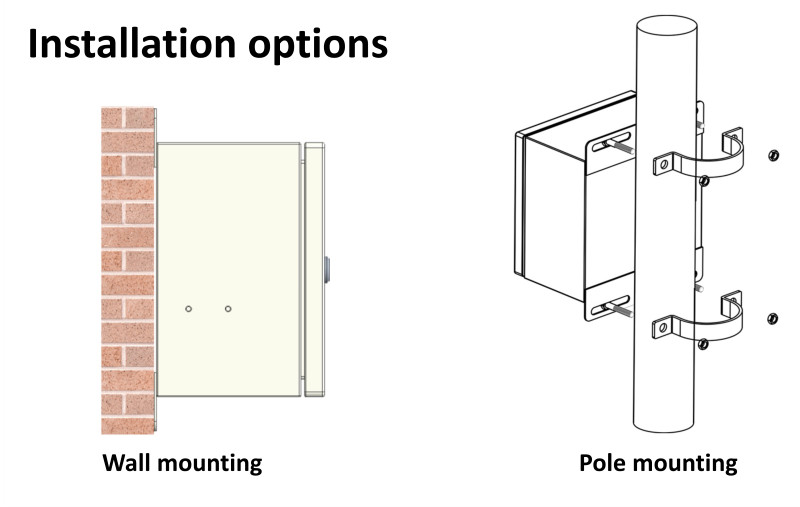

Mounting:

Wall or pole

Operating temp. range:

-40℃ +70℃

Copper Interface :

8x10/100/1000Base-T RJ45

Combo Interface :

None

Other Interfaces:

None

Fiber Interface :

2x1000Base-X SFP

PoE power budget :

30W per port - 185W total budget

Details

Details

TO-2008GP-2GS-200 is ideal solution for surveillance applications such as security monitoring, road monitoring and industrial applications. The compact, well organized and space saving housing protects the equipment from the weather conditions, controls the access to the equipment and cable connections by mechanical keylock and delivers all-in-one solution with its integrated industrial power supply, air breaker and fiber tray.

The rich L2 management functions enable integration into complex networking environment and allow remote monitoring and trouble shooting. Support for IGMP v1/v2/v3 and MLD protocols is essential in surveillance applications where multicast networking is used. Wide range of security features such as TACACS/RADIUS authentication, DHCP filter, MAC filter, ARP association, DoS protects the network from unauthorized access. The switch can be managed through local console, or remotely by Telnet, SSH v1/v2, SNMP v1/v2/v3 and HTTP/HTTPS protocols.
