Solar powered managed outdoor PoE switch,MPPT controller,circuit-breaker,surge protector,fiber tray & cooling fan. 8x10/100/1000BaseT PoE+2x1000Base-X SFP ports. Smart platform & LCD,w/o battery, IP55

Name: Solar powered managed outdoor PoE switch,MPPT controller,circuit-breaker,surge protector,fiber tray & cooling fan. 8x10/100/1000BaseT PoE+2x1000Base-X SFP ports. Smart platform & LCD,w/o battery, IP55
SKU: TO-2008GP-2GS-solar-S
Availability: InStock

Item number:

TO-2008GP-2GS-solar-S

Solar powered managed outdoor PoE switch,MPPT controller,circuit-breaker,surge protector,fiber tray & cooling fan. 8x10/100/1000BaseT PoE+2x1000Base-X SFP ports. Smart platform & LCD,w/o battery, IP55

Available to order

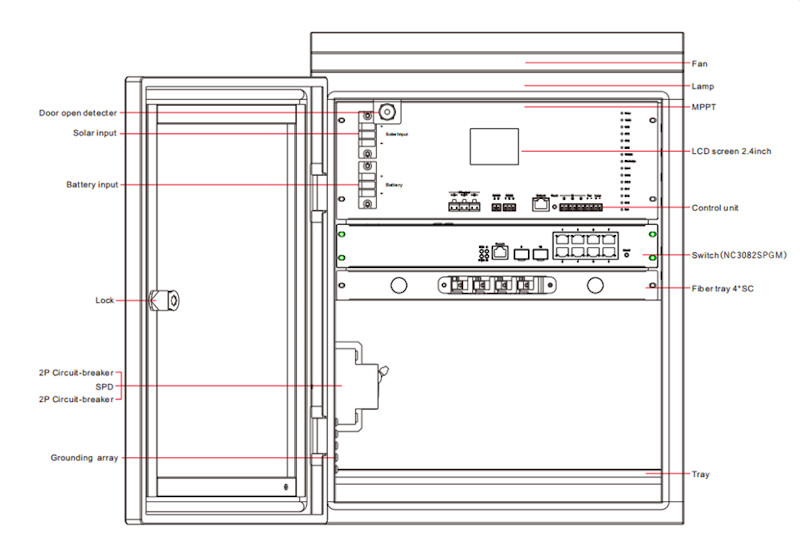

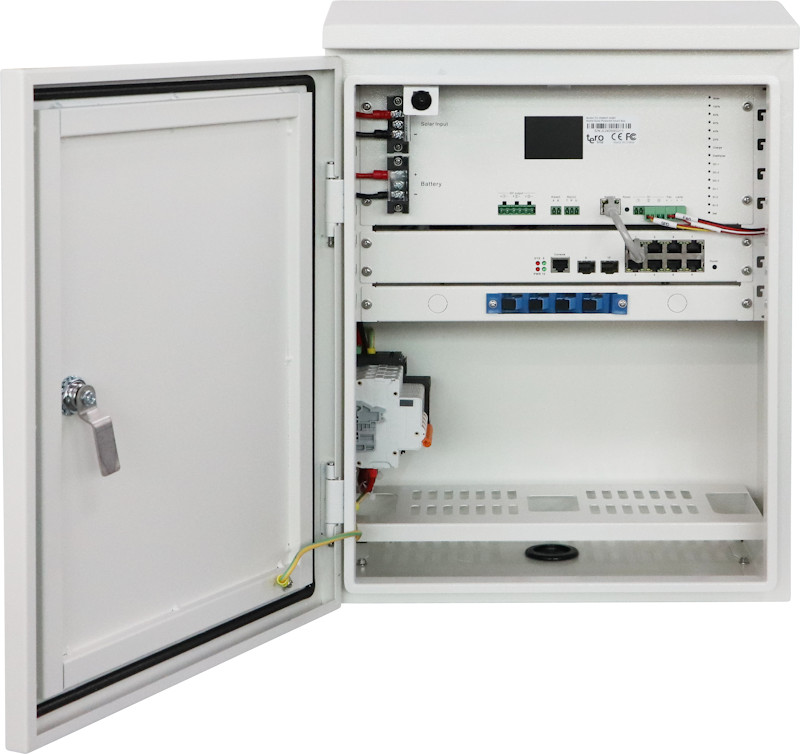

Teroline's TO-2008GP-2GS-solar-S is a solar powered managed industrial PoE switch, conveniently integrated into an IP55 protection rated waterproof housing.The box can be mounted on wall or pole and includes an MPPT charge controller, air-breaker, surge protector, optical fiber tray and cooling fan. The 12V DC Lead-acid or Lithium battery (not included) ensures continuous operation. The power and environmental conditions as well as device security can be monitored and remotely managed through the built-in smart platform. In addition to the 6KV surge protection, 6KV contact/8KV air ESD protection, it has an integrated 385A AC@20KA lightning arrester. The product is compatible with solar panels with 60~180VDC output (must be purchased separately).

The switch has 8x10/100/1000BaseT 802.3af/at PoE ports and 2x1000Base-X SFP interfaces. PoE management features include total power consumption control, single port PoE ON/OFF and port output priority.

Functions set:

Layer 2 managed

Mounting:

Wall or pole

Operating temp. range:

-40℃ +70℃

Copper Interface :

8x10/100/1000Base-T RJ45

Combo Interface :

None

Other Interfaces:

None

Fiber Interface :

2x1000Base-X SFP

PoE power budget :

30W per port - 360W total budget

Details

Details

TO-2008GP-2GS-solar-S is ideal solution for surveillance applications such as security monitoring, road monitoring and industrial applications, where local power source is not available. The compact, well organized and space saving housing protects the equipment from the weather conditions, controls the access to the equipment and cable connections by mechanical keylock and delivers all-in-one solution with its integrated industrial power supply, air breaker and fiber tray.

The rich L2 management functions enable integration into complex networking environment and allow remote monitoring and trouble shooting. Support for IGMP v1/v2/v3 and MLD protocols is essential in surveillance applications where multicast networking is used. Wide range of security features such as TACACS/RADIUS authentication, DHCP filter, MAC filter, ARP association, DoS protects the network from unauthorized access. The switch can be managed through local console, or remotely by Telnet, SSH v1/v2, SNMP v1/v2/v3 and HTTP/HTTPS protocols.
