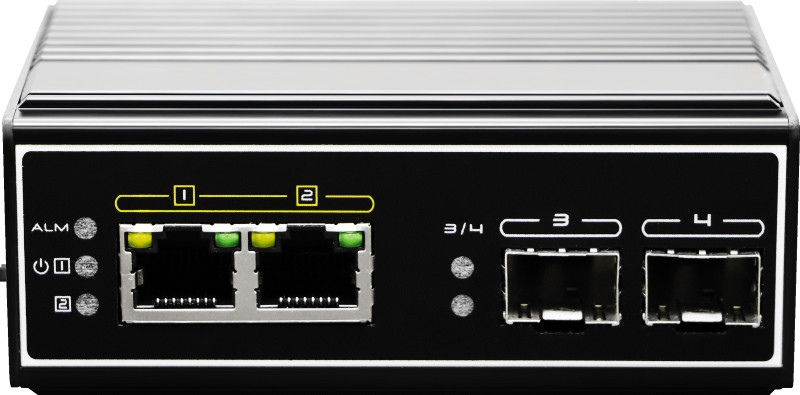

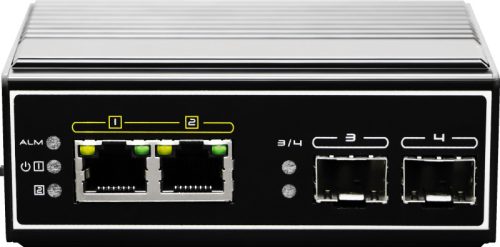

Unmanaged Industrial PoE Switch, DIN-Rail, 2x10/100/1000M PoE++ (ports 1&2 with max 90W output) ports + 2x100/1000M SFP ports, IEEE 802.3af/at/bt compliant, PoE watchdog and alarm relay, -40~+75℃ operating temperature, 48~57VDC redundant power inputs

Name: Unmanaged Industrial PoE Switch, DIN-Rail, 2x10/100/1000M PoE++ (ports 1&2 with max 90W output) ports + 2x100/1000M SFP ports, IEEE 802.3af/at/bt compliant, PoE watchdog and alarm relay, -40~+75℃ operating temperature, 48~57VDC redundant power inputs
SKU: TI-1002GPH-2GS
Price: 128.8 EUR
Availability: InStock

Item number:

TI-1002GPH-2GS

Unmanaged Industrial PoE Switch, DIN-Rail, 2x10/100/1000M PoE++ (ports 1&2 with max 90W output) ports + 2x100/1000M SFP ports, IEEE 802.3af/at/bt compliant, PoE watchdog and alarm relay, -40~+75℃ operating temperature, 48~57VDC redundant power inputs

Downloadable product datasheet: TI-1002GPH-2GS_datasheet.pdf

In stock : 2 pcs

Teroline’s TI-1002GPH-2GS is an unmanaged Industrial Ethernet PoE Switch with 2 x 10/100/1000Base-T 802.3af/at/bt PoE ports and 2 x 1000Base-X SFP ports. It is featured with forced 100M/1000M fiber speed configuration and PoE watchdog functions, which can be easily configured by DIP switches on the top panel.

Functions set:

Unmanaged

Mounting:

DIN Rail

Operating temp. range:

-40℃ +75℃

Copper Interface :

2x10/100/1000Base-T RJ45

Combo Interface :

None

Other Interfaces:

1 x alarm relay output

Fiber Interface :

2x100/1000Base-X SFP

PoE power budget :

90W per port - 180W total budget

101.4 € (128.8 €)

Points earned after purchase: 2.6 €

Details

TI-1002GPH-2GS is an ideal and cost-effective solution for industrial automation applications. It’s designed with input 48-57VDC, redundant inputs with polarity reverse and over-voltage protection, enclosed in a robust IP30 fan-less housing with DIN-rail installation clamp to support extended operation temperature from -40°C to 75°C as well as enhanced EMI/EMC capability. It is easy and fast to deploy in manufacturing facilities, transportation, oil & gas, chemistry, video surveillance and other various industry automation networks in which the operation condition is harsh and electromagnetic compatibility must be fulfilled.

Key features

2 x 1000Base-X SFP fiber interfaces and 2 x 10/100/1000BASE-T RJ45 PoE LAN interfaces with 802.3bt max 90W output each
DIP-switch configuration for 100M/1000M forced fiber speed and PoE watchdog functions
Alarm relay port for power failure, network disconnection and PoE failure indication
IP30 protection level, Fan-less design, and DIN-rail mounted
6KV surge protection; ESD: 6KV/contact, 8KV/air protection
Dual redundant DC48-57V inputs, with reverse & over-voltage protection
Operation temperature from -40 to +75°C
