Unmanaged Industrial PoE Switch, DIN-Rail, 4x10/100/1000M PoE++ (ports 1&2 with max 90W output) + 1x10/100/1000M RJ45 + 2x1000M SFP ports, IEEE 802.3af/at/bt compliant, VLAN, PoE watchdog and alarm relay, -40~+75℃, 48~57VDC redundant power inputs

Name: Unmanaged Industrial PoE Switch, DIN-Rail, 4x10/100/1000M PoE++ (ports 1&2 with max 90W output) + 1x10/100/1000M RJ45 + 2x1000M SFP ports, IEEE 802.3af/at/bt compliant, VLAN, PoE watchdog and alarm relay, -40~+75℃, 48~57VDC redundant power inputs
SKU: TI-1004GPH-2GS
Price: 226.6 EUR
Availability: InStock

Item number:

TI-1004GPH-2GS

Unmanaged Industrial PoE Switch, DIN-Rail, 4x10/100/1000M PoE++ (ports 1&2 with max 90W output) + 1x10/100/1000M RJ45 + 2x1000M SFP ports, IEEE 802.3af/at/bt compliant, VLAN, PoE watchdog and alarm relay, -40~+75℃, 48~57VDC redundant power inputs

Downloadable product datasheet: TI-1004GPH-2GS_datasheet.pdf

In stock : 2 pcs

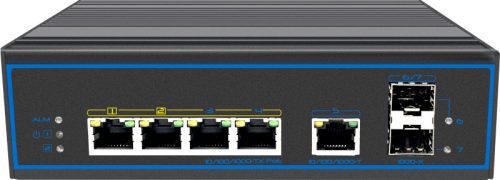

Teroline’s TI-1004GPH-2GS is an unmanaged Industrial Ethernet PoE Switch with 4 x 10/100/1000Base-T 802.3af/at/bt PoE ports, 1 x 10/100/1000Base-T and 2 x 1000Base-X SFP uplink ports. It is featured with LAN port isolation configuration and PoE watchdog functions, which can be easily configured by DIP switches on the top panel.

Functions set:

Unmanaged

Mounting:

DIN Rail

Operating temp. range:

-40℃ +75℃

Copper Interface :

5x10/100/1000Base-T RJ45

Combo Interface :

None

Other Interfaces:

1 x alarm relay output

Fiber Interface :

2x1000Base-X SFP

PoE power budget :

30&90W per port - 240W total budget

178.4 € (226.6 €)

Points earned after purchase: 4.5 €

Details

TI-1004GPH-2GS is an ideal and cost-effective solution for industrial automation applications. It’s designed with input 48-57VDC, redundant inputs with polarity reverse and over-voltage protection, enclosed in a robust IP30 fan-less housing with DIN-rail installation clamp to support extended operation temperature from -40°C to 75°C as well as enhanced EMI/EMC capability. It is easy and fast to deploy in manufacturing facilities, transportation, oil & gas, chemistry, video surveillance and other various industry automation networks in which the operation condition is harsh and electromagnetic compatibility must be fulfilled.

Key features

2 x 1000Base-X SFP fiber + 1 x 10/100/1000Base-T RJ45 uplink interfaces, and 4 x 10/100/1000BASE-T RJ45 PoE LAN interfaces
LAN Port 1 & 2 supports max 90W output each, Port 3 & 4 max 30W output each
DIP-switch configuration for LAN port isolation and PoE watchdog functions
Alarm relay port for power failure, network disconnection and PoE failure indication
IP30 protection level, Fan-less design, and DIN-rail mounted
6KV surge protection; ESD: 8KV/contact, 15KV/air protection
Dual redundant DC48-57V inputs, with reverse & over-voltage protection
Operation temperature from -40 to +75°C
