Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs

Item number:
TI-1005GP
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
1
00
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
Unmanaged Industrial PoE Switch,DIN-rail, 4x10/100/1000Base-T RJ45 PoE + 1x10/100/1000Base-T RJ45 port, IEEE 802.3af and 802.3at PoE+ compliant, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 44~57VDC redundant power inputs
Product Datasheet
Downloadable product datasheet: TI-1005GP_datasheet.pdf
Available to order

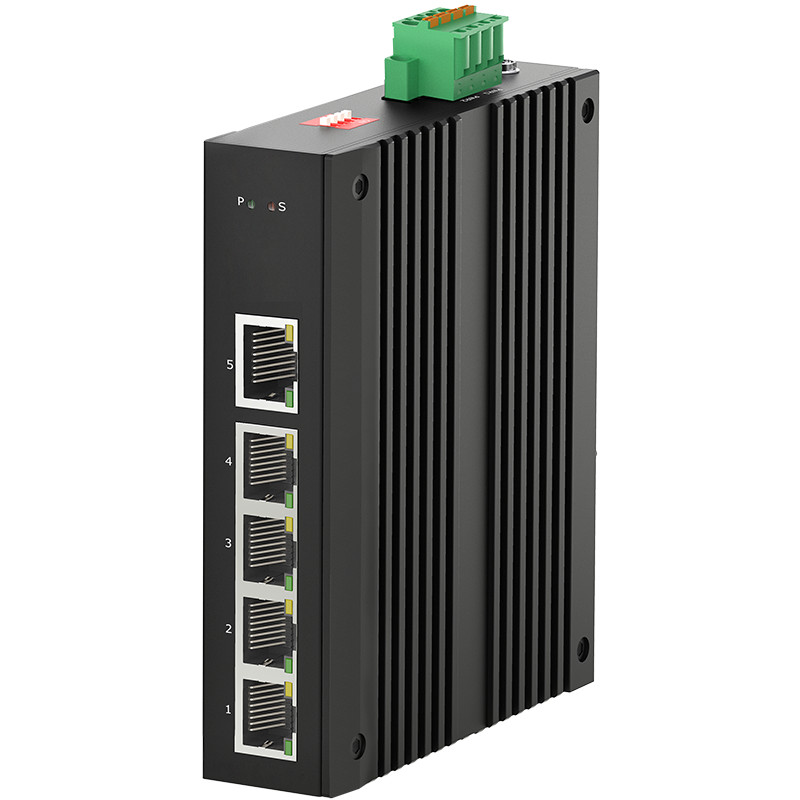

Teroline’s TI-1005GP is an unmanaged Industrial Ethernet PoE Switch with 4 x 10/100/1000Base-T 802.3af/at PoE ports and 1 x 10/100/1000Base-T WAN port. It is featured with port isolation, 250m long-range transmission, QoS (1-2 ports) and PoE watchdog functions, which can be easily configured by a DIP switch on the top panel.

Functions set:
Unmanaged
Mounting:
DIN Rail
Operating temp. range:
-40℃ +75℃
Copper Interface :
5x10/100/1000Base-T RJ45
Combo Interface :
None
Other Interfaces:
None
Fiber Interface :
None
PoE power budget :
30W per port - 120W total budget
62.0 € (78.7 €)
Points earned after purchase: 1.6 €
