L2 Managed Industrial Switch, DIN-rail, 8x10/100/1000Base-T RJ45 + 4x1000/2500Base-X SFP ports, with DI/DO/RS485/Modbus and USB config port, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 12~58VDC redundant power inputs

Name: L2 Managed Industrial Switch, DIN-rail, 8x10/100/1000Base-T RJ45 + 4x1000/2500Base-X SFP ports, with DI/DO/RS485/Modbus and USB config port, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 12~58VDC redundant power inputs
SKU: TI-2008G-4DGS-D
Price: 345.9 EUR
Availability: InStock

Item number:

TI-2008G-4DGS-D

L2 Managed Industrial Switch, DIN-rail, 8x10/100/1000Base-T RJ45 + 4x1000/2500Base-X SFP ports, with DI/DO/RS485/Modbus and USB config port, IP40 protection level, compact design, -40 ~ +75℃ operating temperature, 12~58VDC redundant power inputs

Downloadable product datasheet: TI-2008G-4DGS-D_datasheet.pdf

Available to order

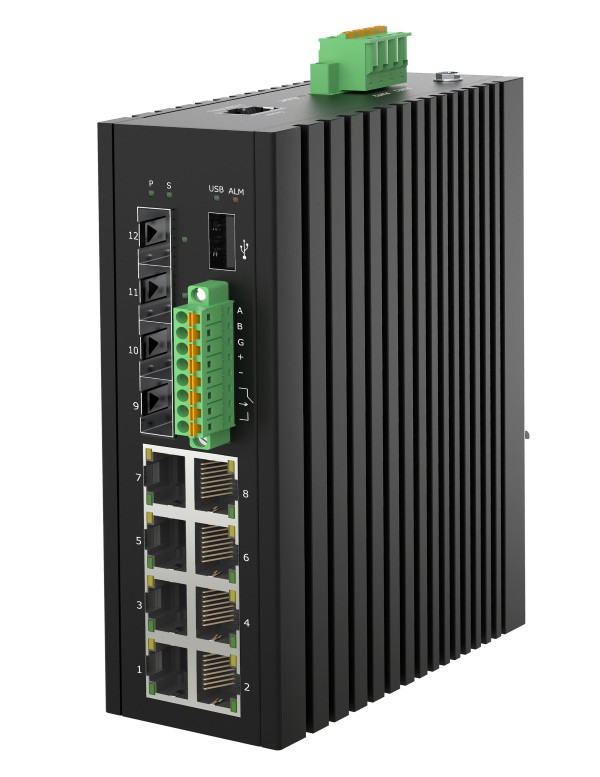

Teroline’s TI-2008G-4DGS-D is a Managed Industrial Ethernet Switch with 8 x 10/100/1000Base-T ports, 4 x 1GbE/2.5GbE SFP ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with full L2 features such as VLAN, QoS, IGMP, Port Mirroring, LLDP, security, ring protection and IPv4/6 based network management.

Functions set:

Layer 2 managed

Mounting:

DIN Rail

Operating temp. range:

-40℃ +75℃

Copper Interface :

8x10/100/1000Base-T RJ45

Combo Interface :

None

Other Interfaces:

1 x DI + 1 x DO + 1 x RS485/Modbus

Fiber Interface :

4x1000/2500Base-X SFP

PoE power budget :

Not PoE

272.4 € (345.9 €)

Points earned after purchase: 6.9 €

Details

TI-2008G-4DGS-D is an ideal solution designed with input 12-58VDC, redundant inputs with polarity reverse and over-voltage protection, enclosed in a robust IP40 fan-less housing with DIN-rail installation clamp to support extended operation temperature from -40°C to 75°C as well as enhanced EMI/EMC capability. It is a powerful and easy-to-deploy solution for most industrial environment, such as manufacturing, transportation, electricity, oil & gas, chemistry, video surveillance and other various industry automation networks.

Key features

4 x 1GbE/2.5GbE SFP fiber interfaces and 8 x 10/100/1000BASE-T RJ45 LAN interfaces, 1 Digital Input/Output/RS485/Modbus interface and 1 USB interface
Full L2 switching functions and network management
ITU-T G.8032 standard ERPS Ring with sub-20ms switchover time
Up to 10K Bytes Jumbo Frame support
IP40 protection level, Fan-less design, and DIN-rail mounted
6KV surge protection; ESD: 8KV/contact, 15KV/air protection
Dual redundant DC12-58V inputs, with reverse & over-voltage protection
Operation temperature from -40 to +75°C
