L3 Managed Industrial Switch, DIN-rail, 24x10/100/1000Base-T RJ45 + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection level, compact design, -40 ~ +80℃ operating temperature, 12~75VDC redundant power inputs

Name: L3 Managed Industrial Switch, DIN-rail, 24x10/100/1000Base-T RJ45 + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection level, compact design, -40 ~ +80℃ operating temperature, 12~75VDC redundant power inputs
SKU: TI-3024G-4XS-D
Price: 1099.5 EUR
Availability: InStock

Article No.:

TI-3024G-4XS-D

L3 Managed Industrial Switch, DIN-rail, 24x10/100/1000Base-T RJ45 + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection level, compact design, -40 ~ +80℃ operating temperature, 12~75VDC redundant power inputs

Downloadable product datasheet: TI-3024G-4XS-D_datasheet.pdf

Available for order

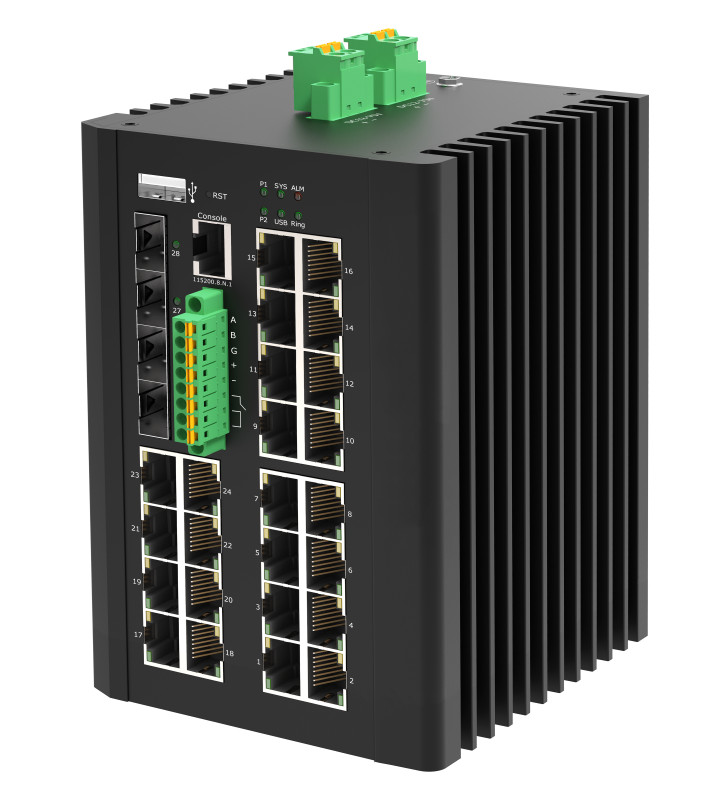

Teroline’s TI-3024G-4XS-D is a L3 Managed Industrial Ethernet Switch with 24 x 10/100/1000Base-T ports, 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with L3 static and dynamic routing with full L2 features as well as IPv4/6 based network management.

Functions set:

Layer 2 managed

Mounting:

DIN Rail

Operating temp. range:

-40℃ +80℃

Copper Interface :

24x10/100/1000Base-T RJ45

Combo Interface :

None

Other Interfaces:

1 x DI + 1 x DO + 1 x RS485/Modbus

Fiber Interface :

4x1G/2.5G/10GBase-X SFP+

PoE power budget :

Not PoE

865.7 € (1 099.5 €)

Bonus point : 22.0 €

Details

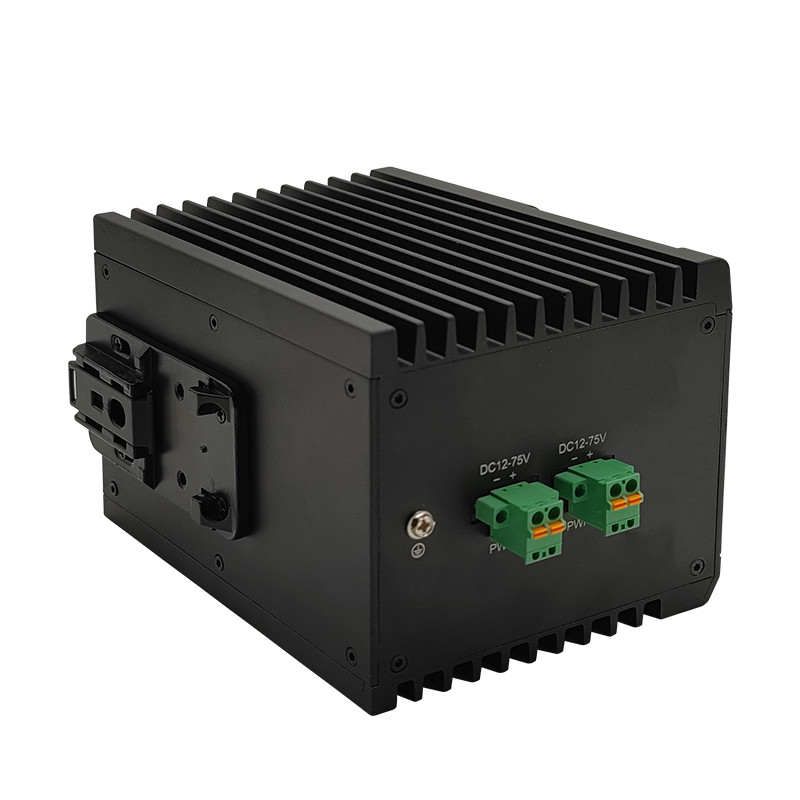

TI-3024G-4XS-D is an ideal solution designed with input 12-75VDC, redundant inputs with polarity reverse and over-voltage protection, enclosed in a robust IP40 fan-less housing with DIN-rail installation clamp to support extended operation temperature from -40°C to 80°C as well as enhanced EMI/EMC capability. It is a powerful and easy-to-deploy solution for most industrial environment, such as manufacturing, transportation, electricity, oil & gas, chemistry, video surveillance and other various industry automation networks.

Key features

4 x 1G/2.5G/10GbE SFP+ interfaces and 24 x 10/100/1000BASE-T RJ45 LAN interfaces, 1 DI/DO/RS485/Modbus and 1 USB interface
L3 static and dynamic routing, full L2 switching functions and network management
ITU-T G.8032 standard ERPS Ring with sub-20ms switchover time
Up to 10K Bytes Jumbo Frame support
IP40 protection level, Fan-less design, and DIN-rail mounted
6KV surge protection; ESD: 8KV/contact, 15KV/air protection
Dual redundant DC12-58V inputs, with reverse & over-voltage protection
Operation temperature from -40 to +80°C
