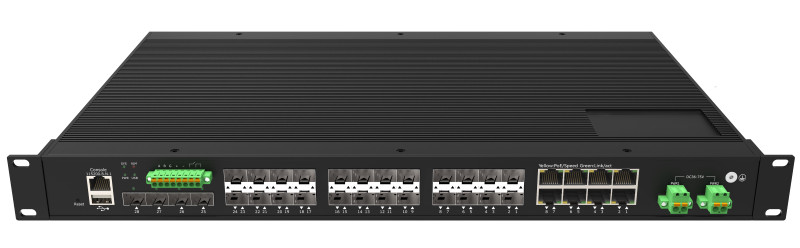

L3 Managed Industrial Switch, 1U 19-inch rack mount, 16x100/1000Base-X SFP + 8x1GE Combo + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection, -40~+75℃ operating temperature, AC/DC redundant power supplies

Item number:
TI-5016GS-8GC-4XS-D
L3 Managed Industrial Switch, 1U 19-inch rack mount, 16x100/1000Base-X SFP + 8x1GE Combo + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection, -40~+75℃ operating temperature, AC/DC redundant power supplies
Product Datasheet
Downloadable product datasheet: TI-5016GS-8GC-4XS-D_datasheet.pdf
Available to order

Teroline’s TI-5016GS-8GC-4XS-D is a L3 rack-mountable Aggregation Industrial Ethernet Switch with 16 x 100/1000Base-X SFP ports, 8 x 1GbE Combo ports and 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with L3 static and dynamic routing with full L2 features as well as IPv4/6 based network management.

Functions set:
Layer 2 managed
Mounting:
19" Rack
Operating temp. range:
-40℃ +80℃
Copper Interface :
None
Combo Interface :
8xGE RJ45+SFP
Other Interfaces:
1 x DI + 1 x DO + 1 x RS485/Modbus
Fiber Interface :
16x100/1000Base-X SFP + 4x1G/2.5G/10GBase-X SFP+
PoE power budget :
Not PoE
1 076.7 € (1 367.4 €)
Points earned after purchase: 27.3 €
  • Details
  • Key features
Details

TI-5016GS-8GC-4XS-D is an ideal solution designed with dual redundant AC or DC power supplies and over-voltage protection, enclosed in a robust standard 1RU 19-inch rack mountable IP40 fan-less housing to support extended operation temperature from -40°C to 80°C as well as enhanced EMI/EMC capability. It is a powerful and easy-to-deploy L2 aggregation switch for most industrial environment, such as manufacturing, transportation, electricity, oil & gas, chemistry, video surveillance and other various industry automation networks.

Key features
  • 4 x 1G/2.5G/10GbE SFP+ fiber interfaces, 16 x 100/1000BASE-X SFP and 8 x 1GbE Combo LAN interfaces, 1 DI/DO/RS485/Modbus interface and 1 USB interface
  • L3 static and dynamic routing, full L2 switching functions and network management
  • ITU-T G.8032 standard ERPS Ring with sub-20ms switchover time
  • Up to 10K Bytes Jumbo Frame support
  • IP40 protection level, Fan-less design, and DIN-rail mounted
  • 6KV surge protection; ESD: 8KV/contact, 15KV/air protection
  • Dual redundant AC or DC power supplies, with reverse & over-voltage protection
  • Operation temperature from -40 to +80°C
