Unmanaged outdoor PoE switch with integrated 120W PSU, circuit-breaker, surge protector, optical fiber tray and cooling fan. 8x10/100BaseT PoE+2x1000Base-X SFP ports. IP55 rated. PoE budget 115W.

Name: Unmanaged outdoor PoE switch with integrated 120W PSU, circuit-breaker, surge protector, optical fiber tray and cooling fan. 8x10/100BaseT PoE+2x1000Base-X SFP ports. IP55 rated. PoE budget 115W.
SKU: TO-1008P-2GS-120
Availability: InStock

Item number:

TO-1008P-2GS-120

Unmanaged outdoor PoE switch with integrated 120W PSU, circuit-breaker, surge protector, optical fiber tray and cooling fan. 8x10/100BaseT PoE+2x1000Base-X SFP ports. IP55 rated. PoE budget 115W.

Available to order

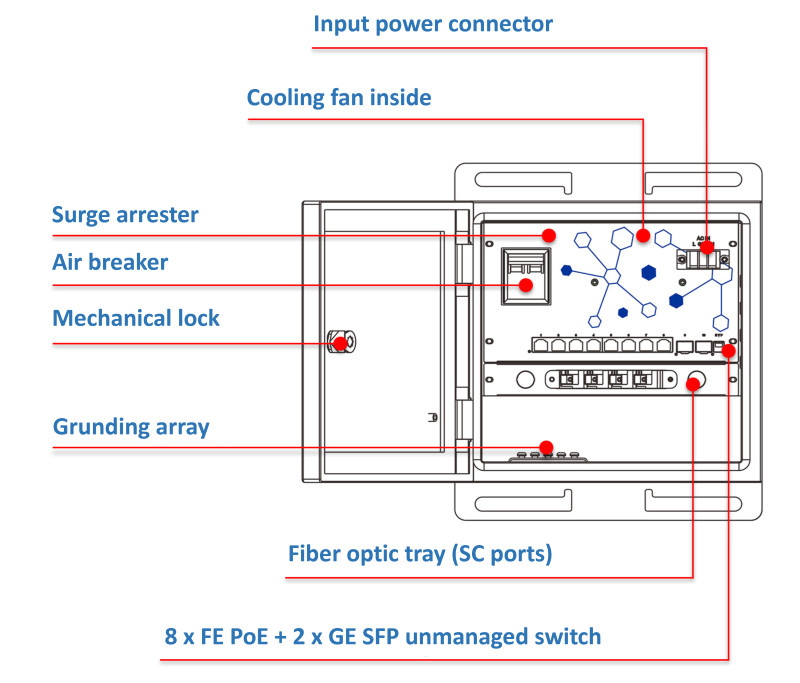

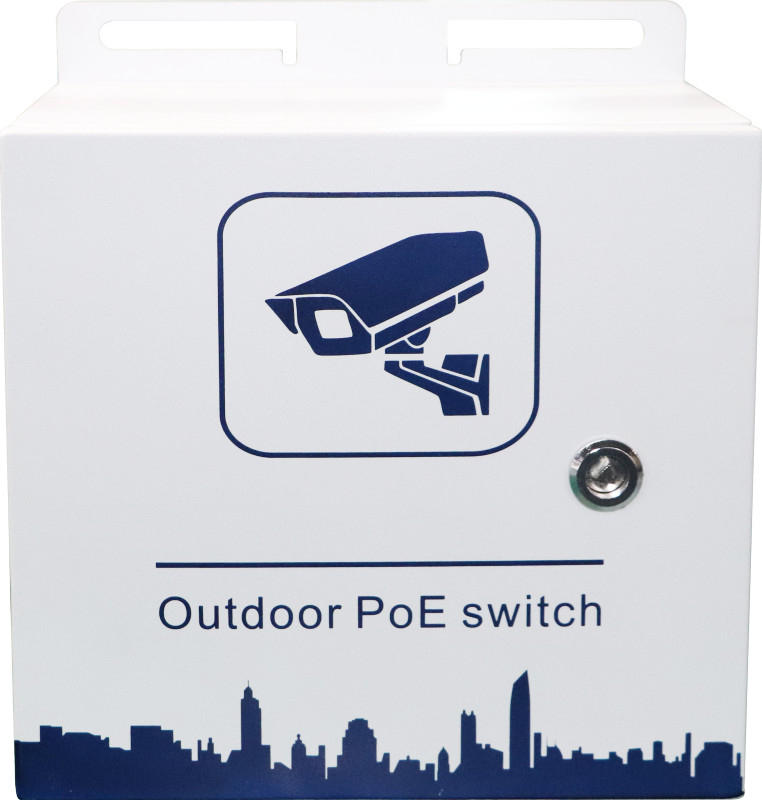

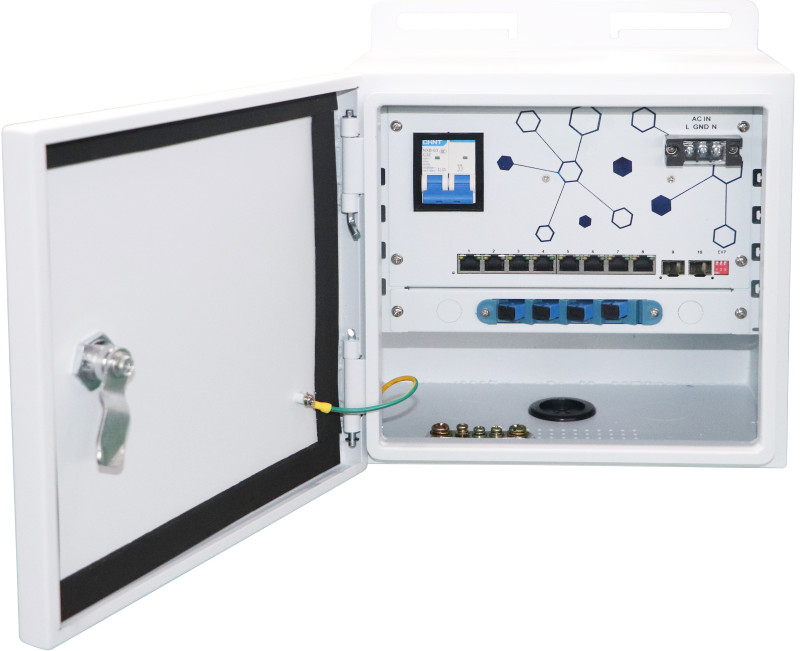

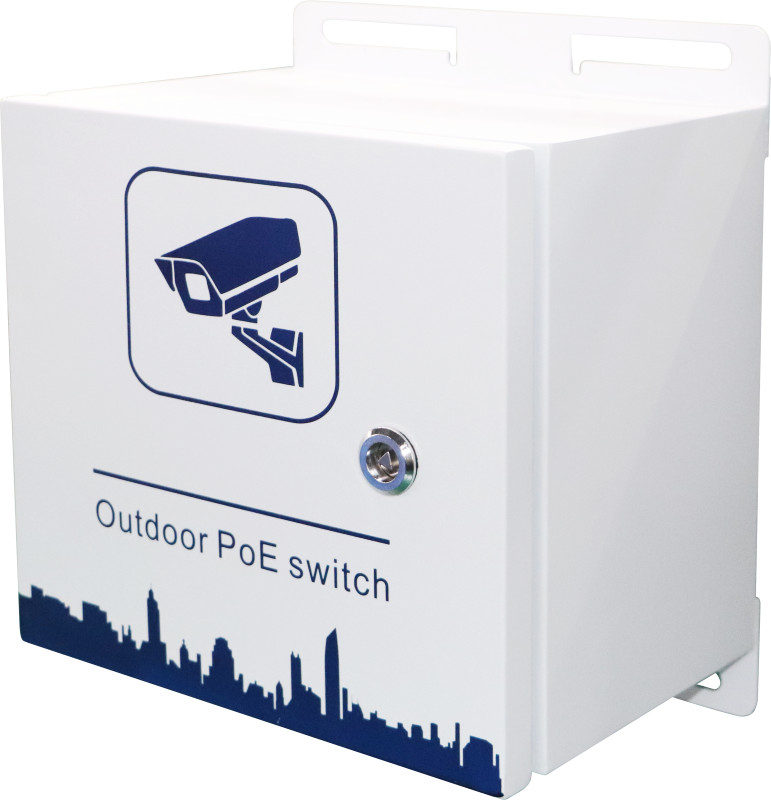

Teroline's TO-1008GP-2GS-120 is an unmanaged industrial PoE switch, conveniently integrated into an IP55 protection rated waterproof housing. The box can be mounted on wall or pole and includes a 120W industrial PSU, air-breaker, surge protector, optical fiber tray and cooling fan. In addition to the 6KV surge protection, 6KV contact/8KV air ESD protection, it has an integrated 385A AC@20KA lightning arrester.

The switch has 8x10/100BaseT 802.3af/at PoE ports and 2x1000Base-X SFP interfaces. PoE ports are featured with PoE watchdog function and port isolation, which can easily be configured by DIP switches.

Functions set:

Unmanaged

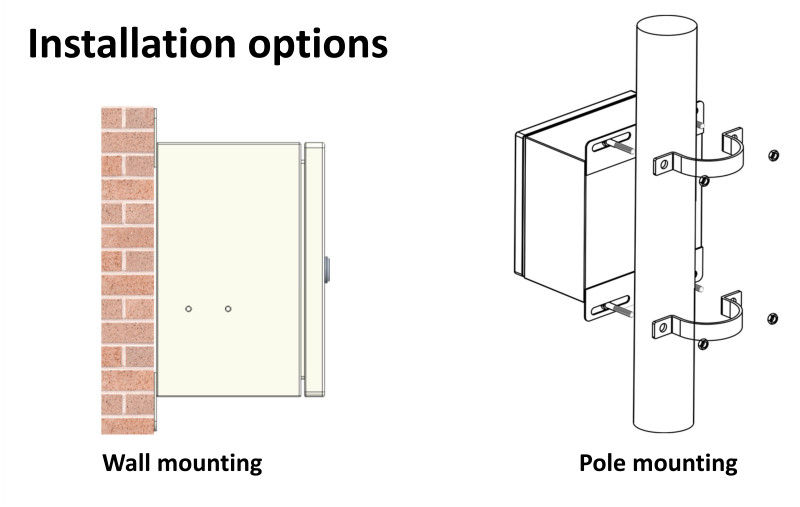

Mounting:

Wall or pole

Operating temp. range:

-40℃ +70℃

Copper Interface :

8x10/100Base-T RJ45

Combo Interface :

None

Other Interfaces:

None

Fiber Interface :

2x1000Base-X SFP

PoE power budget :

30W per port - 115W total budget

Details

Details

TO-1008GP-2GS-120 is ideal solution for surveillance applications such as security monitoring, road monitoring and industrial applications. The compact, well organized and space saving housing protects the equipment from the weather conditions, controls the access to the equipment and cable connections by mechanical keylock and delivers all-in-one solution with its integrated industrial power supply, air breaker and fiber tray.

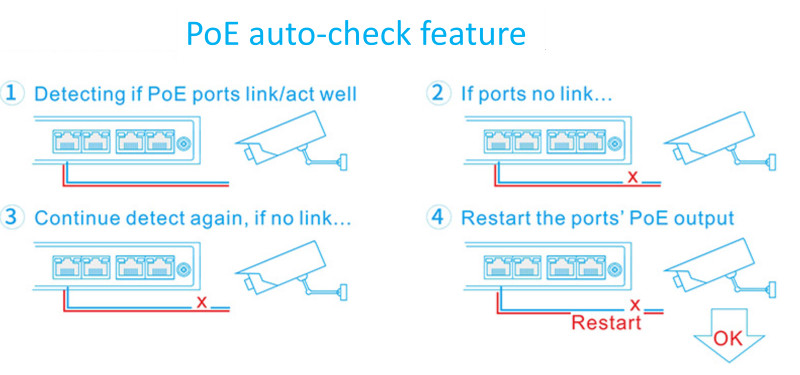

The switchs' PoE auto-check function automatically detects the frozen PD equipment and restarts the ports’ output of PSE, and restarts the PD device. The port isolation function ensures that access ports can only communicate with the uplink interfaces of the switch. The PoE extend feature allows connection of PD devices up to 250m away.
