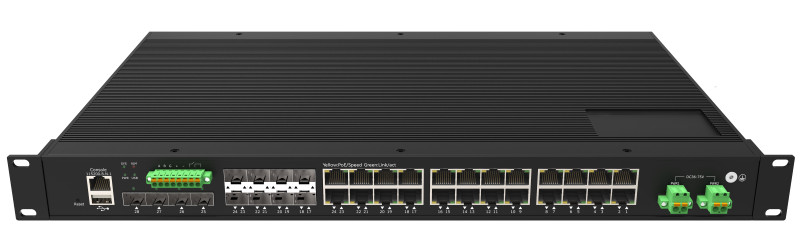

L3 Managed Industrial Switch, 1U 19-inch rack mount, 16x10/100/1000Base-T RJ45 + 8x1GE Combo + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection, -40~+75℃ operating temperature, AC/DC redundant power supplies

Name: L3 Managed Industrial Switch, 1U 19-inch rack mount, 16x10/100/1000Base-T RJ45 + 8x1GE Combo + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection, -40~+75℃ operating temperature, AC/DC redundant power supplies
SKU: TI-5016G-8GC-4XS-D
Price: 1335.6 EUR
Availability: InStock

Item number:

TI-5016G-8GC-4XS-D

L3 Managed Industrial Switch, 1U 19-inch rack mount, 16x10/100/1000Base-T RJ45 + 8x1GE Combo + 4x1G/2.5G/10GBase-X SFP+ ports, DI/DO/RS485/Modbus and USB config port, IP40 protection, -40~+75℃ operating temperature, AC/DC redundant power supplies

Downloadable product datasheet: TI-5016G-8GC-4XS-D_datasheet.pdf

Available to order

Teroline’s TI-5016G-8GC-4XS-D is a L3 rack-mountable Aggregation Industrial Ethernet Switch with 16 x 10/100/1000Base-T RJ45 ports, 8 x 1GbE Combo ports and 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with L3 static and dynamic routing with full L2 features as well as IPv4/6 based network management.

Functions set:

Layer 2 managed

Mounting:

19" Rack

Operating temp. range:

-40℃ +80℃

Copper Interface :

16x10/100/1000Base-T RJ45

Combo Interface :

8xGE RJ45+SFP

Other Interfaces:

1 x DI + 1 x DO + 1 x RS485/Modbus

Fiber Interface :

4x1G/2.5G/10GBase-X SFP+

PoE power budget :

Not PoE

1 051.7 € (1 335.6 €)

Points earned after purchase: 26.7 €

Details

TI-5016G-8GC-4XS-D is an ideal solution designed with dual redundant AC or DC power supplies and over-voltage protection, enclosed in a robust standard 1RU 19-inch rack mountable IP40 fan-less housing to support extended operation temperature from -40°C to 80°C as well as enhanced EMI/EMC capability. It is a powerful and easy-to-deploy L2 aggregation switch for most industrial environment, such as manufacturing, transportation, electricity, oil & gas, chemistry, video surveillance and other various industry automation networks.

Key features

4 x 1G/2.5G/10GbE SFP+ fiber interfaces, 16 x 10/100/1000BASE-T RJ45 and 8 x 1GbE Combo LAN interfaces, 1 DI/DO/RS485/Modbus interface and 1 USB interface
L3 static and dynamic routing, full L2 switching functions and network management
ITU-T G.8032 standard ERPS Ring with sub-20ms switchover time
Up to 10K Bytes Jumbo Frame support
IP40 protection level, Fan-less design, and DIN-rail mounted
6KV surge protection; ESD: 8KV/contact, 15KV/air protection
Dual redundant AC or DC power supplies, with reverse & over-voltage protection
Operation temperature from -40 to +80°C
